Product Introduction
The PCBA for the H Non-Contact Thermometer is the core circuit component designed specifically for the H Series non-contact thermometer. It serves as the "brain" for the thermometer's accurate temperature measurement, data processing, and functional output. Built on a customized PCB, this assembly integrates key components such as an infrared temperature sensor, microcontroller (MCU), signal amplification module, power management unit, and data transmission interface. Through precision soldering and circuit design, this discrete electronic componentry is transformed into a coordinated whole. This directly determines the non-contact thermometer's temperature measurement accuracy, response speed, and stability, serving as the core link between the thermometer's hardware structure and temperature measurement functionality.
On the technical level, this PCBA component focuses on the core needs of non-contact temperature measurement scenarios and has three core advantages: First, high-precision signal processing technology, through the built-in low-noise signal amplification circuit and temperature compensation algorithm, can effectively filter out environmental interference and convert the weak temperature signal collected by the infrared sensor into accurate digital data. The temperature measurement error is controlled within ±0.2°C, meeting medical-grade temperature measurement standards; second, fast response design, optimized MCU instruction cycle and sensor trigger mechanism, so that the time from triggering temperature measurement to displaying results is shortened to less than 0.5 seconds, avoiding long waiting times for users; third, low power consumption and stability optimization, using a low-power chip solution and surge protection design, the power consumption is as low as 5mA in single temperature measurement mode, and it can adapt to a wide operating temperature environment of -10°C~60°C, ensuring stable operation in different scenarios such as homes, hospitals, and public places, and reducing performance fluctuations caused by environmental changes.
Product Application Areas:
1. Departments in General Hospitals: In fever clinics, PCBA For HNon Contact thermometers based on this component enable rapid initial screening of patients, completing temperature measurements in under 0.5 seconds and eliminating long queues. In pediatric wards, its non-contact nature minimizes disturbance to infants and young children, while its high accuracy of ±0.2°C allows precise monitoring of temperature fluctuations, providing data support for doctors to adjust treatment plans. In ICUs, the component's wide temperature stability (-10°C to 60°C) adapts to the constant temperature environment within the wards, enabling continuous and accurate temperature measurement and ensuring professional critical care.
2. Community Health Service Centers and Clinics: As primary healthcare facilities, these institutions routinely see a large number of patients with common illnesses. Thermometers equipped with this PCBA are easy to use, allowing medical staff to quickly complete temperature checks without frequent calibration, improving patient efficiency. Furthermore, its low power consumption (5mA per measurement) reduces the need for frequent charging, enabling continuous patient care.
3. Nursing home care areas: Elderly individuals have sensitive skin and limited mobility. Non-contact thermometers can measure their temperature without touching them, preventing discomfort. The stable performance of this PCBA component ensures consistent and accurate operation in the constant temperature environment of nursing homes, helping caregivers monitor the patient's temperature in real time, detect abnormalities, and implement care measures promptly.
4. Transportation hubs: In places like airport terminals, train station waiting areas, and long-distance bus station ticket gates, where traffic is high and personnel flow is frequent, thermometers based on this component enable rapid, contactless temperature measurement, allowing passengers to complete their temperature checks without stopping. A single device can screen over 30 people per minute, effectively reducing congestion at transportation hubs. Furthermore, the component's anti-interference design filters out environmental interference such as air conditioning and crowd airflow within stations, ensuring accurate temperature measurement and providing a strong barrier to transportation safety. 5. Industrial Production Workshops: In industrial workshops such as electronics and machinery, some positions require temperature monitoring to ensure safe production (e.g., high-temperature workstations). This component can be customized with a high-temperature adaptation version to accommodate high-temperature workshop environments (some workshops reach temperatures exceeding 40°C), ensuring the thermometer can accurately measure temperatures even in these harsh conditions. It also supports integration with workshop management systems, enabling real-time upload and management of employee temperature data.
6. Cold Chain Logistics Warehousing Areas: Cold chain warehousing areas can experience temperatures as low as -18°C, making conventional temperature measurement equipment prone to malfunction. This PCBA component can be customized with a low-temperature stable version, enabling non-contact thermometers to function properly in cold chain environments. This allows workers to quickly monitor their own temperatures and those entering the warehouse area, avoiding temperature errors caused by low temperatures and ensuring the safety of cold chain logistics.

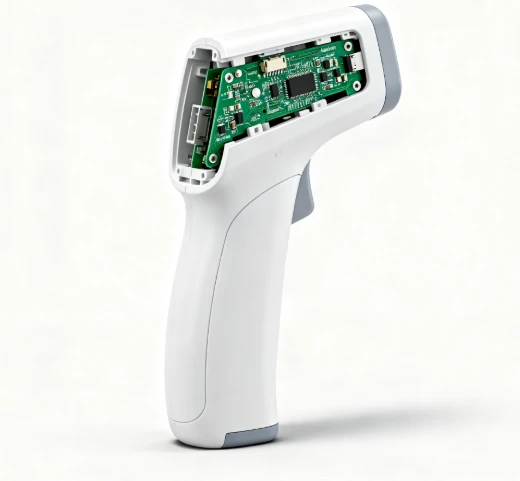

Finished product

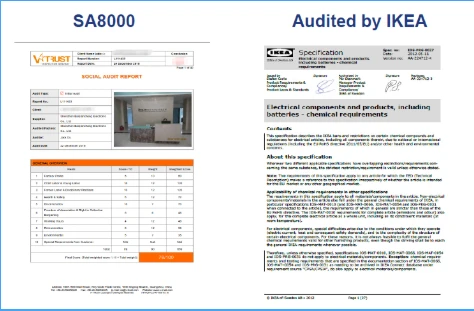

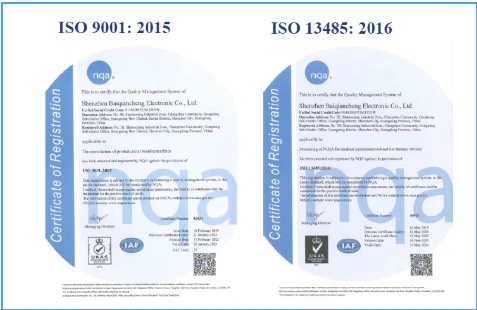

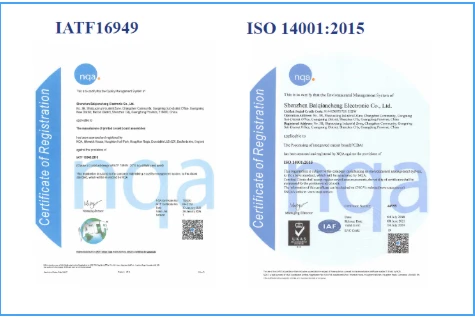

Our certifications
About us:
1. IATF16949, ISO13485, ISO9001, ISO14001,SA8000 certificates-owned
2. 13,000 square meter building, with 18 fully automated SMT lines, 4 DIP lines, 4 hand soldering lines, 3 Assembly lines, and so on.
3. A professional R&D team, that can provide hardware and software design, PCB layout, block diagram design, structural design,etc
FAQ：
Q: What types of non-contact thermometers are compatible with this PCBA?
A: This PCBA is compatible with most commercially available infrared non-contact thermometer designs and is suitable for handheld, wall-mounted, and portable non-contact thermometers.
Q: Does this PCBA For HNon Contact Thermometer support high-precision temperature measurement?
A: Yes, this PCBA uses a high-precision infrared sensor interface design that supports ±0.2°C temperature measurement accuracy, enabling fast and reliable temperature detection.
Q: Is this PCBA easy to integrate into existing products?
A: This PCBA has a compact design and provides standardized interfaces and clear wiring instructions, making it easy to quickly integrate into existing non-contact thermometer products.
Q: What are the operating and storage temperature ranges of this PCBA?
A: The operating temperature range is 0°C to 50°C, and the storage temperature range is -20°C to 70°C, which is suitable for common medical and home environments.
Q: Is firmware or software support provided?
A: Yes, we provide optional firmware and development documentation to facilitate secondary development, function customization, and upgrades.
