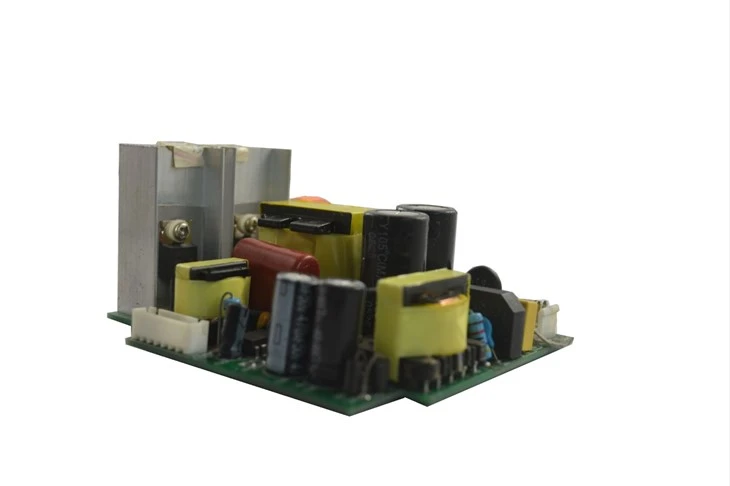

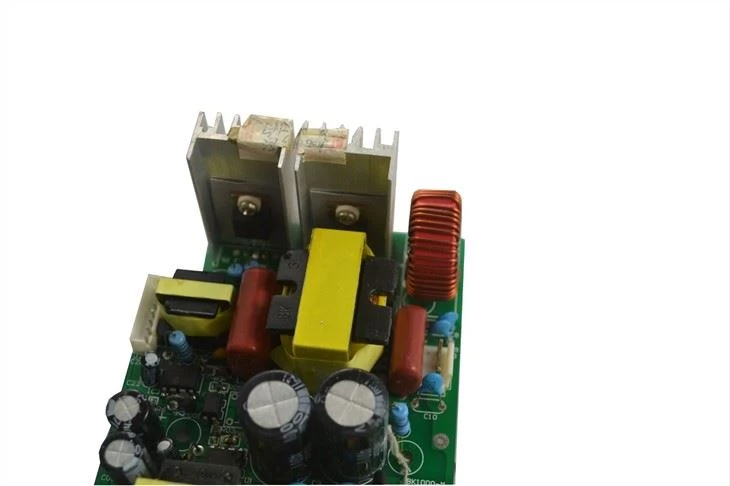

Home Backup System PCBA
1. Product Introduction
The Home Backup System PCBA is a core circuit board assembly designed for residential energy storage and emergency power backup solutions. It serves as the intelligent control hub that enables seamless switching between grid power, renewable energy inputs (such as solar), and backup batteries during outages.
Equipped with an advanced Smart Battery Management System (BMS), this PCBA ensures safe, efficient operation of home backup systems by monitoring battery status, regulating power distribution, and protecting against overcharging, over-discharging, and overcurrent issues. It supports both on-grid and off-grid hybrid operations, helping homeowners reduce energy costs through time-of-use (TOU) optimization while ensuring uninterrupted power for critical household devices.
With compliance to international safety and quality standards, the PCBA delivers reliable performance, extended battery lifespan, and flexible integration with various battery types and home energy setups. Its compact design and customizable features make it suitable for both standard and high-demand residential applications.
2. Specifications
Core Parameters
Base Material: FR-4 (flame-retardant UL94 V-0), optional Rogers/Arlon high-performance materials for specialized needs
Copper Thickness: 0.5 oz – 12 oz, standard 4 oz for high-current applications
Board Thickness: 0.4 mm – 3.2 mm, customizable per system requirements
Layer Count: 1 – 58 layers, supporting complex circuit designs
Operating Voltage Range: 12V – 144V DC (compatible with 24V, 48V common home storage systems)
Current Capacity: 15A – 500A, capable of handling high-power loads and surge demands
Surface Finish: Lead-free HASL, ENIG, immersion silver, or OSP for corrosion resistance
Minimum Trace/Spacing: 3 mil / 3 mil, supporting fine-pitch components (down to 0.2mm pitch)
Key Features
Integrated BMS with cell voltage, temperature, and current monitoring
Seamless switchover (≤20ms) between power sources during outages
Support for Li-ion, LiFePO4, and LTO battery chemistries
Communication interfaces: UART, RS485, CAN (compatible with mobile apps and smart home platforms)
Protection functions: Overcharge, over-discharge, overcurrent, short circuit, and thermal protection
Compliance with ISO 9001, RoHS, CE, and FCC standards
3. Application Scenarios
Residential Emergency Power Backup: Powers critical household devices (refrigerators, lighting, routers, medical equipment) during grid outages, ensuring daily life continuity.
Solar-Powered Home Energy Systems: Integrates with rooftop solar panels to store excess energy for nighttime use or backup, reducing reliance on grid power.
Smart Home Energy Management: Works with time-of-use (TOU) electricity plans to charge batteries during low-rate periods and discharge during peak hours, cutting energy costs by up to 80%.
Compact Home Office Setups: Protects computers, servers, and work equipment from data loss and hardware damage caused by sudden power disruptions.
Remote or Rural Residences: Provides reliable power for homes with unstable grid connections, supporting extended backup runtime (scalable up to 90kWh with expanded battery banks).
High-Demand Residential Loads: Handles surge power needs for appliances like central air conditioning (up to 66kW surge capacity) and electric vehicle chargers.
4. Company Introduction
We are a leading manufacturer of PCBA solutions with over 23 years of experience in the energy storage and smart home sectors. Headquartered in Shenzhen, China, we specialize in end-to-end services from PCB design, component sourcing, and assembly to testing and logistics.
Our production facility features 18 fully automated SMT lines (Yamaha, Samsung) and 13 DIP/THT assembly lines, enabling a daily soldering capacity of 8 million+ points with a 99.2% first-pass yield. We adhere to IPC-A-610 Class 2/3 quality standards and hold certifications including ISO 9001, IATF 16949, and ISO 13485, ensuring our products meet global regulatory requirements.
We offer flexible customization options (OEM/ODM) to meet specific customer needs, from prototype development (24-hour rapid prototyping) to mass production. Our global customer base spans North America, Europe, and Asia, supported by a dedicated technical team providing DFM/DFA analysis and lifelong technical support. With a 98.4% on-time delivery rate and global supply chain capabilities, we are trusted by leading home energy brands worldwide.
5. FAQ
Q1: What battery type is most suitable for use with this PCBA?
A1: Lithium Iron Phosphate (LiFePO4) batteries are recommended for their high energy density, long lifespan, and low maintenance. Lead-acid batteries are also compatible but are larger, heavier, and require more ventilation.
Q2: How long does the PCBA take to switch to backup power during an outage?
A2: The switchover time is ≤20ms, ensuring seamless power continuity without disrupting connected devices (critical for computers and medical equipment).
