Hey there! As an SMT PCB supplier, I've seen my fair share of challenges in the industry. One of the most frustrating issues that can crop up is component tombstoning. It's a problem that can lead to a whole bunch of headaches, from production delays to increased costs. In this blog post, I'm gonna share some tips on how to prevent component tombstoning in SMT PCB.
First off, let's talk about what component tombstoning actually is. Tombstoning, also known as the Manhattan effect, happens when one end of a surface - mount component stands up during the reflow soldering process, looking like a tombstone. This usually occurs with small, rectangular components like chip resistors and capacitors.
Understanding the Causes
To prevent tombstoning, we need to understand what causes it. There are several factors at play here.
Uneven Heating
One of the main culprits is uneven heating. When the solder paste on one end of the component melts faster than the other, the surface tension of the molten solder can pull that end up, causing the tombstoning effect. This can be due to a variety of reasons, such as poor heat transfer in the reflow oven, incorrect oven settings, or uneven placement of components on the PCB.
Solder Paste Issues
The quality and application of solder paste also matter a great deal. If the solder paste is not applied evenly, or if there's too much or too little of it, it can lead to uneven melting and tombstoning. Contaminated solder paste can also cause problems, as it may not melt properly or may have inconsistent properties.
Component Placement
Incorrect component placement is another common cause. If a component is placed off - center or at an angle, the solder joints may form unevenly, increasing the risk of tombstoning. Also, if the component is not properly aligned with the solder pads, the surface tension forces during reflow can be unbalanced.
Preventive Measures
Optimize Reflow Oven Settings
The reflow oven is a critical part of the SMT process, and getting the settings right is essential. Make sure the oven has a uniform temperature distribution. You can use a thermal profiler to measure the temperature at different points on the PCB during the reflow process. Adjust the heating rate, peak temperature, and soak time according to the component and solder paste specifications. A slower heating rate can help ensure more even melting of the solder paste. For example, if you're using a lead - free solder paste, you may need to adjust the peak temperature to around 240 - 260°C.
Use High - Quality Solder Paste
Invest in good - quality solder paste from a reputable supplier. Check the expiration date and storage conditions of the solder paste. When applying the solder paste, use a stencil with the correct aperture size and thickness. The stencil should be properly aligned with the PCB pads to ensure even application. You can also consider using a solder paste inspection (SPI) system to check the volume and shape of the applied solder paste before component placement.
Improve Component Placement Accuracy
Use a high - precision pick - and - place machine to ensure accurate component placement. Regularly calibrate the machine to maintain its accuracy. The machine should be able to place components within the specified tolerance, usually within a few micrometers. Before starting production, perform a test run to check the placement accuracy. You can also use vision systems to verify the position and orientation of the components after placement.
Design Considerations
The PCB design can also play a role in preventing tombstoning. Make sure the solder pads are designed correctly. The size and shape of the pads should be appropriate for the components. For example, for small chip components, the pads should be slightly larger than the component ends to provide enough solder for a good joint. Also, consider adding thermal vias near the components to improve heat transfer and reduce the risk of uneven heating.
Real - World Examples

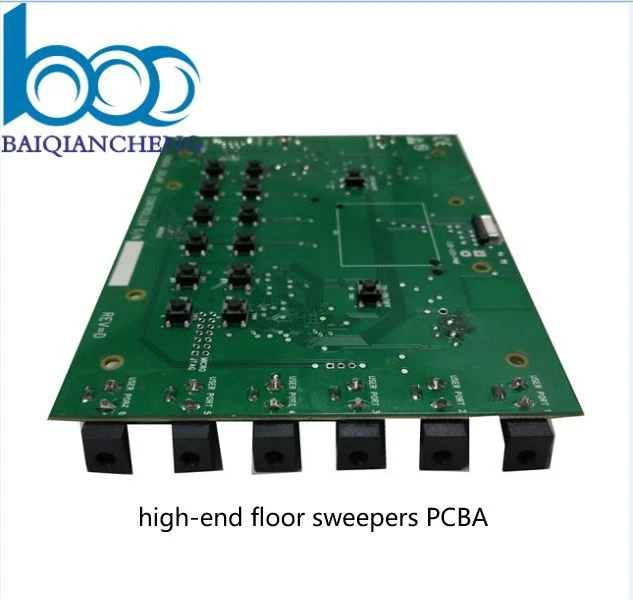

Let's take a look at some of the products we manufacture at our company. We offer Thermostat PCBA Manufacturing, Floor - Sweeper PCBA, and Microwave Smt Pcba Service. In all these products, preventing component tombstoning is crucial for ensuring high - quality and reliable performance.
For the thermostat PCBA, which has a lot of small surface - mount components, we pay extra attention to the reflow oven settings. We use a slow heating rate to ensure even melting of the solder paste. For the floor - sweeper PCBA, with its more complex layout, we focus on accurate component placement and proper PCB design. And for the microwave Smt Pcba, where high - frequency performance is critical, we make sure to use high - quality solder paste and optimize the heating profile to prevent any issues that could affect the electrical performance.
Monitoring and Quality Control
Even with all these preventive measures in place, it's important to have a good monitoring and quality control system. Inspect the PCBs after the reflow process using automated optical inspection (AOI) or X - ray inspection. These methods can detect tombstoning and other soldering defects. If any issues are found, analyze the root cause and take corrective actions immediately. You can also keep a record of the defect rates and use this data to continuously improve your processes.
Conclusion
Preventing component tombstoning in SMT PCB is a multi - faceted challenge that requires attention to detail at every step of the process. From optimizing reflow oven settings and using high - quality solder paste to ensuring accurate component placement and proper PCB design, every aspect matters. By following these tips and implementing a good quality control system, you can significantly reduce the risk of tombstoning and improve the overall quality of your PCBs.
If you're in the market for high - quality SMT PCB products, whether it's for thermostat PCBA, floor - sweeper PCBA, or microwave Smt Pcba, we'd love to work with you. Our team of experts is dedicated to providing the best solutions and ensuring that your products are free from issues like component tombstoning. Reach out to us to start a procurement discussion and let's create great PCBs together!
