Hey there! I'm an OEM PCB Assembly supplier, and today I wanna chat about the common defects in OEM PCB Assembly and how we can fix 'em. PCB assembly is a complex process, and even with the best technology and expertise, issues can pop up. But don't worry, I'll break down the most frequent problems and share some solutions.
Common Defects in OEM PCB Assembly
Solder Joint Defects
One of the most common issues we see is solder joint defects. These can include solder bridges, which are when the solder connects two or more adjacent pads that shouldn't be connected. This can cause short circuits in the board. Another problem is insufficient solder, where there isn't enough solder to create a proper electrical connection. Cold solder joints are also a headache. They happen when the solder doesn't melt completely or cools too quickly, resulting in a weak connection that can break over time.
The causes of these solder joint defects can be diverse. Poor soldering techniques, incorrect soldering temperatures, or dirty components can all contribute. For example, if the soldering iron isn't hot enough, the solder won't flow properly, leading to insufficient solder or cold solder joints. And if the components aren't clean, the solder might not adhere correctly.
Component Placement Errors
Another biggie is component placement errors. This could mean components are placed in the wrong orientation, completely in the wrong position on the board, or missing altogether. Component placement is a critical step in PCB assembly, and any mistakes can lead to the board not functioning as intended.
This usually happens due to human error during the manual placement process or issues with the automated placement machines. Sometimes, the pick-and-place machines can misalign, leading to incorrect component placement. And if the operators aren't paying close attention during manual placement, they might place a component upside down or in the wrong spot.
Short Circuits and Open Circuits
Short circuits occur when there's an unintended connection between two points in the circuit, causing an abnormal flow of electricity. This can damage components and prevent the board from working correctly. Open circuits, on the other hand, are the opposite. They happen when there's a break in the circuit, and the electrical current can't flow through.
Short circuits can be caused by solder bridges, conductive debris on the board, or manufacturing defects in the PCB itself. Open circuits can result from broken traces, poor solder joints, or components that are not properly connected.
Delamination
Delamination is when the layers of the PCB start to separate from each other. This can happen due to excessive heat during the soldering process, improper lamination during manufacturing, or environmental factors like high humidity. Delamination can lead to issues with the electrical performance of the board and can even cause the board to fail completely.
How to Fix These Defects
Solder Joint Defects
To fix solder bridges, we can use a desoldering braid or a desoldering pump. The desoldering braid is a thin, copper braid that is placed over the solder bridge. When heated with a soldering iron, the braid absorbs the excess solder, removing the bridge. A desoldering pump can also be used to suck up the excess solder.
For insufficient solder or cold solder joints, we can reheat the joint with a soldering iron and add more solder if needed. It's important to make sure the iron is at the right temperature and that the joint is clean before adding new solder. We also need to heat the joint evenly to ensure a good connection.
Component Placement Errors
If a component is placed in the wrong position or orientation, we can carefully remove it using a desoldering tool. Once the component is removed, we can clean the pads and re - place the component correctly. For automated placement machines, regular maintenance and calibration are crucial to prevent placement errors. We also need to double - check the program settings to ensure they are accurate.
Short Circuits and Open Circuits
To find short circuits, we can use a multimeter or an automated test equipment. Once we locate the short, we can remove the cause, such as a solder bridge or conductive debris. For open circuits, we need to find the break in the circuit. If it's a broken trace, we can use a conductive pen or a copper tape to repair it. If it's a poor solder joint, we can re - solder it as described above.
Delamination
If the delamination is minor, we can try to re - laminate the board using a hot press. However, if the delamination is severe, the board might need to be replaced. To prevent delamination in the future, we need to control the soldering temperature, ensure proper lamination during manufacturing, and store the boards in a dry environment.
Examples of Our OEM PCB Assembly Products
At our company, we've worked on a variety of OEM PCB assembly projects. For instance, we've assembled BESS Controller Board PCBA, which are crucial for battery energy storage systems. These boards require high - precision assembly to ensure reliable performance.

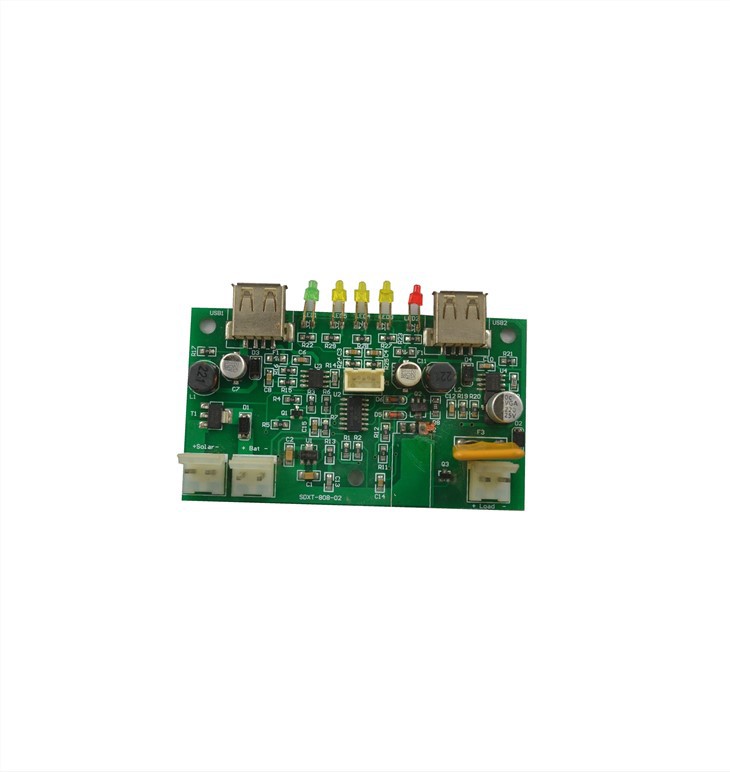

We've also handled Smt Dip Smart Electrician Pcb Board Pcba for smart electrical applications. These boards often have complex circuitry and need careful component placement to function correctly.
Another area we're involved in is OEM OEM Smart Medical Electronics. Medical electronics require extremely high standards of quality and reliability. We use strict quality control measures to ensure that these boards are free from defects and meet all the necessary regulations.
Final Thoughts and Call to Action
As you can see, OEM PCB assembly has its challenges, but with the right knowledge and techniques, we can overcome these common defects. At our company, we're committed to providing high - quality PCB assembly services. We use the latest technology, experienced technicians, and strict quality control processes to ensure that our products are defect - free.
If you're in the market for OEM PCB assembly services, whether it's for a small - scale project or a large - scale production, we'd love to hear from you. We can work with you to meet your specific requirements and ensure that your PCB assembly is done right. Contact us for a free quote and let's start discussing your project.
